Benefits and Features
● Ultra-Low 1.3μVP-P Noise (0.1Hz to 10Hz, 2.048V Output)
● Ultra-Low 3ppm/°C (max) Temperature Coefficient
● ±0.02% (max) Initial Accuracy
● Wide (VOUT + 200mV) to 12.6V Supply Voltage Range
● Low 200mV (max) Dropout Voltage
● 380μA Quiescent Supply Current
● 10mA Sink/Source-Current Capability
● Stable with CLOAD = 0.1μF to 10μF
● Low 20ppm/1000hr Long-Term Stability
● 0.025Ω (max) Load Regulation
● 20μV/V (max) Line Regulation

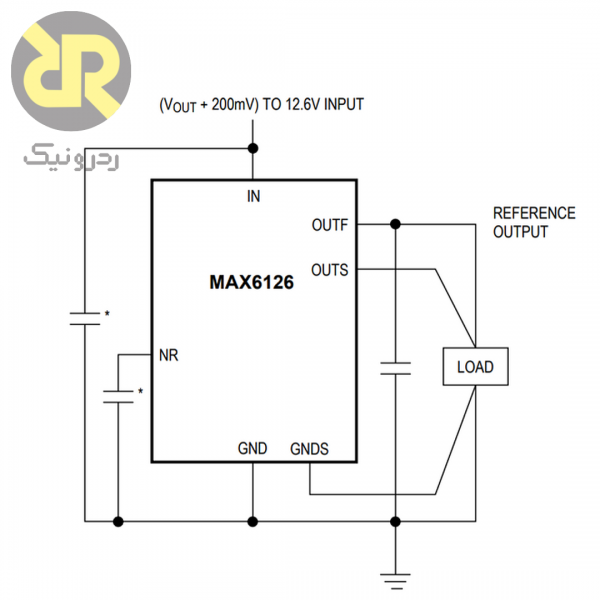

● Force and Sense Outputs for Remote Sensing
