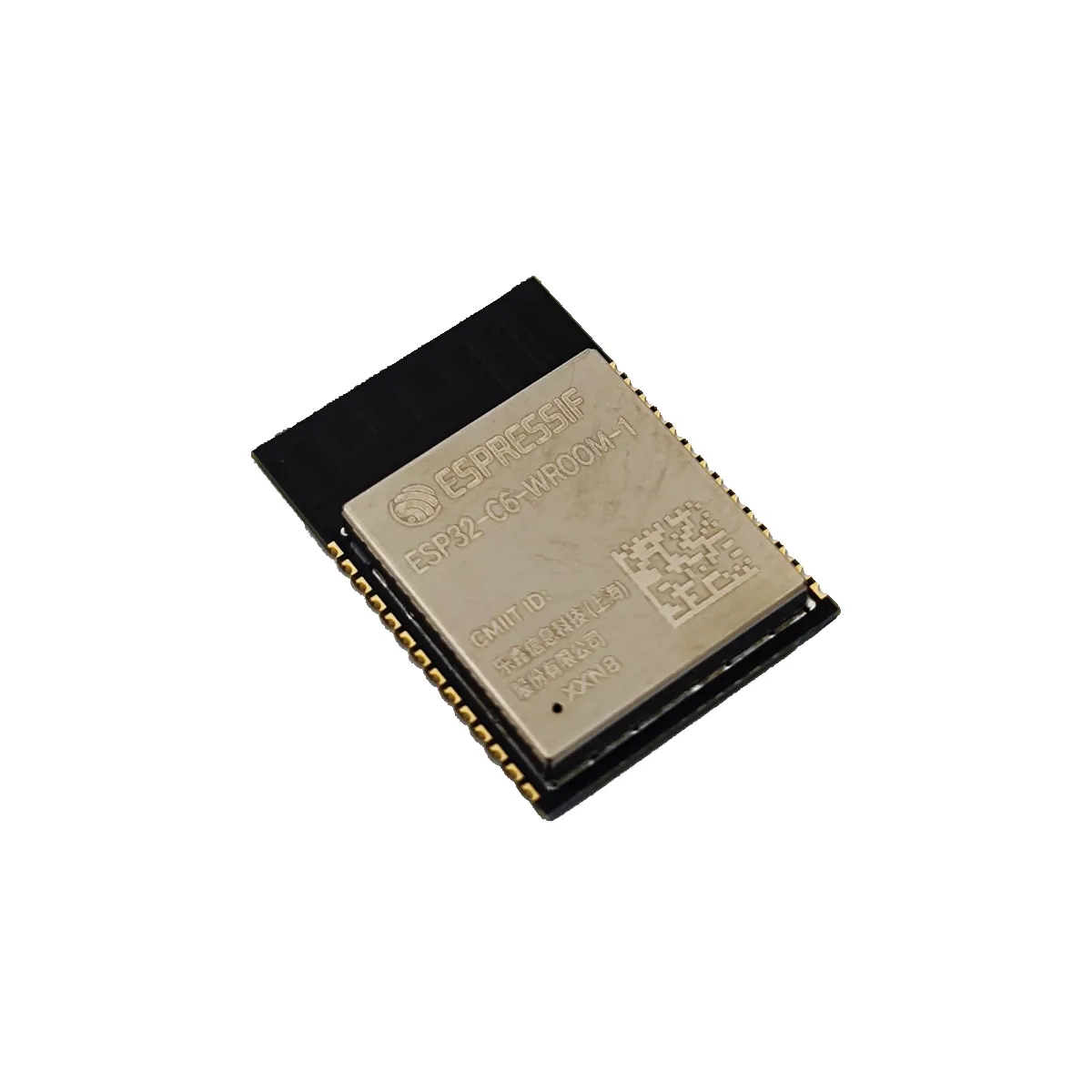

ماژول ESP32-C6-WROOM-1-N4

این ماژول از جمله ماژول های esp32 می باشد که از 4 فناوری وای فای، بلوتوث، Thread و Zigbee پشتیبانی می کند. دارای 23 gpio می باشد و از رابط هایی دیجیتال نظیر SPI, UART, I2C,I2S و … پشتیبانی می کند.

کاربرد ها

خانه های هوشمند
اتوماسیون صنعتی
کشاورزی هوشمند
رباتیک
پزشکی
تجهیزات صوتی

ویژگی‌های محصول

با توجه به اهمیت مطالب فنی از ترجمه صرف نظر شده است.

Module that supports 2.4 GHz Wi-Fi 6 (802.11 ax), Bluetooth® 5 (LE), Zigbee and Thread
(۸۰۲.۱۵.۴)
Built around ESP32-C6 series of SoCs, 32-bit RISC-V single-core microprocessor
Flash up to 16 MB
23 GPIOs, rich set of peripherals
On-board PCB antenna

Features

CPU and On-Chip Memory
• ESP32-C6 embedded, 32-bit RISC-V single-core
microprocessor, up to 160 MHz
• ROM: 320 KB
• HP SRAM: 512 KB
• LP SRAM: 16 KB

Wi-Fi
• 1T1R in 2.4 GHz band
• Operating frequency: 2412 ~ 2484 MHz
• IEEE 802.11ax-compliant
– 20 MHz-only non-AP mode
– MCS0 ~MCS9
– Uplink and downlink OFDMA, especially
suitable for simultaneous connections in
high-density environments
– Downlink MU-MIMO (multi-user, multiple
input, multiple output) to increase network
capacity
– Beamformee that improves signal quality
– Channel quality indication (CQI)
– DCM (dual carrier modulation) to improve
link robustness
– Spatial reuse to maximize parallel
transmissions
– Target wake time (TWT) that optimizes
power saving mechanisms
• Fully compatible with IEEE 802.11b/g/n protocol
– 20 MHz and 40 MHz bandwidth
– Data rate up to 150 Mbps
– Wi-Fi Multimedia (WMM)
– TX/RX A-MPDU, TX/RX A-MSDU
– Immediate Block ACK
– Fragmentation and defragmentation
– Transmit opportunity (TXOP)
– Automatic Beacon monitoring (hardware
TSF)
– 4 × virtual Wi-Fi interfaces
– Simultaneous support for Infrastructure BSS
in Station mode, SoftAP mode, Station +
SoftAP mode, and promiscuous mode
Note that when ESP32-C6 scans in Station
mode, the SoftAP channel will change along
with the Station channel
– 802.11mc FTM

Bluetooth
• Bluetooth LE: Bluetooth 5.3 certified
• Bluetooth mesh
• High power mode (20 dBm)
• Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
• Advertising extensions
• Multiple advertisement sets
• Channel selection algorithm #2
• LE power control
• Internal co-existence mechanism between Wi-Fi
and Bluetooth to share the same antenna

IEEE 802.15.4
• Compliant with IEEE 802.15.4-2015 protocol
• OQPSK PHY in 2.4 GHz band
• Data rate: 250 Kbps
• Thread 1.3
• Zigbee 3.0

Peripherals
• GPIO, SPI, parallel IO interface, UART, I2C, I2S,
RMT (TX/RX), pulse counter, LED PWM, USB
Serial/JTAG controller, MCPWM, SDIO2.0 slave
controller, GDMA, TWAI® controller, on-chip
debug functionality via JTAG, event task matrix,
ADC, temperature sensor, general-purpose
timers, watchdog timers, etc

Integrated Components on Module
• 40 MHz crystal oscillator
• SPI flash

Antenna Options
• On-board PCB antenna (ESP32-C6-WROOM-1)
• External antenna via a connector
(ESP32-C6-WROOM-1U)

Operating Conditions
• Operating voltage/Power supply: 3.0 ~ 3.6 V
• Operating ambient temperature:
– 85 °C version module: –40 ~ 85 °C
– 105 °C version module: –40 ~ 105 °C
