ماژول زاویه سنج F203-00A-212-00

ماژول زاویه سنج F203-00A-212-00

با توجه به اهمیت مطالب فنی از ترجمه صرف نظر شده است.

description

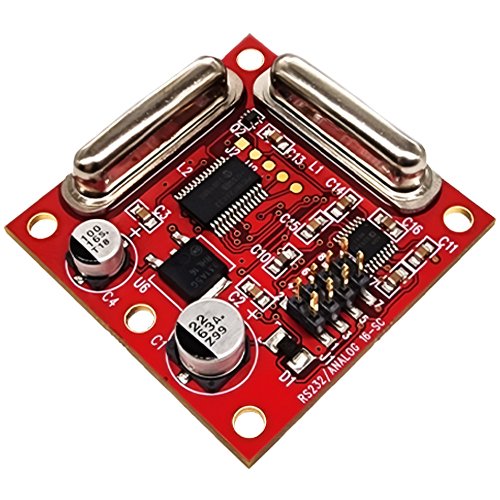

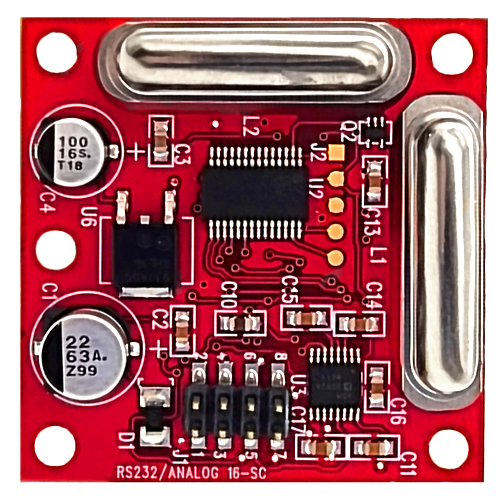

The F203-00A-212-00 analog/RS-232 inclinometer utilizes two Fredericks 0703-0712-99 narrow-range single axis electrolytic tilt sensors and the 1-6200-012 16-bit analog/RS-232 signal conditioner. The use of high accuracy single axis sensors and 16-bit ADCs make this inclinometer ideal for high precision tilt measurement. This inclinometer has superior tolerances and unit to unit performance with an economic design, making it an excellent solution for many markets and applications.

Operating specification

Digital Interface                              RS-232
Analog Output                                0 to 5 V DC
Supply Voltage                               7 to 16 V DC
Supply Current                               <10 mA
Operating Range                            ±3°
Linear Range                                   ±1°
Axes of Measurement                   2
Repeatability                                  ±0.001°
Resolution                                       ≤0.001°
Null Offset (Mounting Offset)         ±2°
Long Term Stability/Drift                ≤0.005°
Null Temperature Coefficient        ≤0.0005° per °C
Scale Temperature Coefficient (±1°) 0.375%
Operating Temperature                  -20° to 50 °C
Storage Temperature                     -40° to 100 °C
Time Constant (63.2% of final output)     ≤1 second

Key features and benefits

• ±0.001° repeatability, ≤0.001° resolution, very high accuracy
• ≤0.001° long term drift with an extremely long life
• Minimal drift compared to MEMS devices
• -20 °C to 50 °C operating temperature for industrial applications
• Live text and video chat technical support

Applications

• Geotechnical and structural monitoring
• Construction tools, laser leveling
• Medical devices
