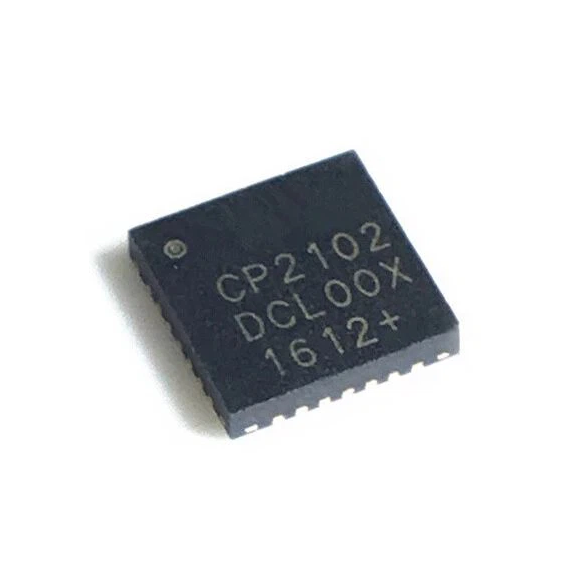

آی سی مبدل USB به UART مدل CP2102N
5,503,200 ﷼
موجود
آی سی مبدل USB به UART مدل CP2102N
ویژگیهای محصول
با توجه به اهمیت مطالب فنی از ترجمه صرف نظر شده است.
Features
Single-Chip USB to UART Data Transfer
Integrated USB transceiver; no external resistors required
Integrated clock; no external crystal required
Integrated 1024-Byte EEPROM for vendor ID, product
ID, serial number, power descriptor, release number,
and product description strings
On-chip power-on reset circuit
On-chip voltage regulator: 3.3 V output
100% pin and software compatible with CP2101
USB Function Controller
USB Specification 2.0 compliant; full-speed (12 Mbps)
USB suspend states supported via SUSPEND pins
Asynchronous Serial Data BUS (UART)
All handshaking and modem interface signals
Data formats supported:
– Data bits: 5, 6, 7, and 8
– Stop bits: 1, 1.5, and 2
– Parity: odd, even, mark, space, no parity
Baud rates: 300 bps to 1 Mbits
576 Byte receive buffer; 640 byte transmit buffer
Hardware or X-On/X-Off handshaking supported
Event character support
Line break transmission
Virtual COM Port Device Drivers
Works with existing COM Port PC applications
Royalty-free distribution license
Windows 98 SE/2000/XP
MAC OS-9
MAC OS-X
Linux 2.40 and greater
USBXpress™ Direct Driver Support
Supply Voltage
Self-powered: 3.0 to 3.6 V
USB bus powered: 4.0 to 5.25 V
Package
Lead free 28-pin MLP (5 x 5 mm)
Ordering Part Number
z CP2102-GM
Temperature Range: –40 to +85 °C
Example Applications
Upgrade of RS-232 legacy devices to USB
Cellular phone USB interface cable
PDA USB interface cable
USB to RS-232 serial adapter
