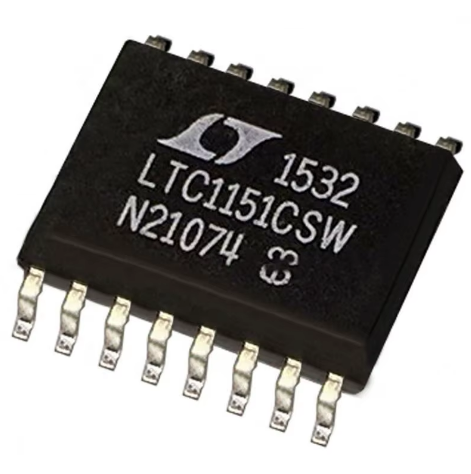

تقویت کننده ی عملیاتی LTC1151CSW

تقویت کننده ی عملیاتی LTC1151CSW

با توجه به اهمیت مطالب فنی از ترجمه صرف نظر شده است.

The LTC®1151 is a high voltage, high performance dual zero-drift operational amplifier. The two sample-and-hold capacitors per amplifier required externally by other chopper amplifiers are integrated on-chip. The LTC1151 also incorporates proprietary high voltage CMOS structures which allow operation at up to 36V total supply voltage. The LTC1151 has a typical offset voltage of 0.5µV, drift of 0.01µV/°C, 0.1Hz to 10Hz input noise voltage of 1.5µVP-P, and a typical voltage gain of 140dB. It has a slew rate of 3V/µs and a gain-bandwidth product of 2.5MHz with a supply current of 0.9mA per amplifier. Overload recovery times from positive and negative saturation are 3ms and 20ms, respectively. The LTC1151 is available in a standard 8-lead plastic DIP package as well as a 16-lead wide body SO. The LTC1151 is pin compatible with industry-standard dual op amps and runs from standard ±15V supplies, allowing it to plug in to most standard bipolar op amp sockets while offering significant improvement in DC performance.

Features

Maximum Offset Voltage Drift: 0.05µV/°C
High Voltage Operation: ±18V
No External Components Required
Maximum Offset Voltage: 5µV
Low Noise: 1.5µVP-P (0.1Hz to 10Hz)
Minimum Voltage Gain: 125dB
Minimum CMRR: 106dB
Minimum PSRR: 110dB
Low Supply Current: 0.9mA/Amplifier
Single Supply Operation: 4.75V to 36V
Input Common Mode Range Includes Ground
Typical Overload Recovery Time: 20ms
Available in 8-Lead N8 and 16-Lead SW Packages

Application

Strain Gauge Amplifiers
Instrumentation Amplifiers
Electronic Scales
Medical Instrumentation
Thermocouple Amplifiers
High Resolution Data Acquisition
